High Tenacity Polyester Yarn 3330 Tex for Optical Cable Binding
High Tenacity Polyester Yarn 3330 Tex for Optical Cable Binding High Tenacity Polyester Yarn 3330 Tex for Optical Cable Binding High Tenacity Polyester Yarn 3330 Tex for Optical Cable Binding High Tenacity Polyester Yarn 3330 Tex for Optical Cable Binding High Tenacity Polyester Yarn 3330 Tex for Optical Cable Binding
接触

High Tenacity Polyester Yarn 3330 Tex for Optical Cable Binding

最小注文数量 : 1000 価格 : $1.30-1.80
起源の場所: 中国,GUA

詳細情報
線形密度: 3330 Tex 壊れた強さ: ≥185n
伸長: ≥13％（標準）、22％以上（低収縮） 熱収縮: 4-6％（標準）、0.5-1.5％（低収縮）
材料: 100％ポリエステル 糸タイプ: 高い粘り強さ
ねじれ: 非ツイスト ボビンID: 95、128 mm（標準）、52、76 mm（オプション）
ボビンの高さ: 170、185、200、215 mm（標準）、110、285 mm（オプション） 糸OD: 200-250 mm
糸重量: 2〜6kg コア素材: 紙
最大回転数: 4000のrpm デュアルフォーム: 利用可能
収縮タイプ: 標準、低、超低
ハイライト:

high tenacity polyester yarn

,

optical cable binding yarn

,

PP filler polyester yarn

製品の説明

High Tenacity Polyester Yarn 3330 Tex for Fiber Optical Cables
Product Overview
Our polyester binder yarn is manufactured from first quality materials, specifically designed for binding components in fiber optic cables. Featuring very high tenacity and minimal shrinkage, it's ideal for high-speed servers and available in standard or low shrinkage variants.
Key Features
  • High-grade polyester construction
  • Compatible with spools exceeding 4000 rpm
  • Available in dual-end versions
  • Ultra low shrinkage option
  • Optimized for concentric binders
  • Non-twisted polyester yarn
  • Available in white, red, yellow, and black
Technical Specifications
Standard & Low Shrinkage
Weight (Denier) Linear Density (tex) Length Per Kilogram (m/kg) Breaking Strength (N) Elongation (%) Heat Shrinkage (177°C, 10min, pre-tension 0.05cN/dtex) (%)
1000 1110 9000 ≥65 ≥13 (Standard), ≥22 (Low shrinkage) 4-6 (Standard), 0.5-1.5 (Low shrinkage)
1500 1660 6000 ≥95 ≥13 (Standard), ≥22 (Low shrinkage) 4-6 (Standard), 0.5-1.5 (Low shrinkage)
2000 2220 4500 ≥125 ≥13 (Standard), ≥22 (Low shrinkage) 4-6 (Standard), 0.5-1.5 (Low shrinkage)
3000 3330 3000 ≥185 ≥13 (Standard), ≥22 (Low shrinkage) 4-6 (Standard), 0.5-1.5 (Low shrinkage)
Dual Form Specifications
Weight (Denier) Linear Density (tex) Length Per Kilogram (m/kg) Breaking Strength (N) Elongation (%) Heat Shrinkage (180°C, 10min) (%)
2×1000 2x1110 9000 ≥65 ≥13 (Standard), ≥22 (Low shrinkage) 4-6 (Standard), 0.5-1.5 (Low shrinkage)
2x1500 2x1670 6000 ≥95 ≥13 (Standard), ≥22 (Low shrinkage) 4-6 (Standard), 0.5-1.5 (Low shrinkage)
2x2000 2x2220 4500 ≥125 ≥13 (Standard), ≥22 (Low shrinkage) 4-6 (Standard), 0.5-1.5 (Low shrinkage)
Note: Values shown are for reference only. For precise technical data, please request our technical data sheets.
Product Images

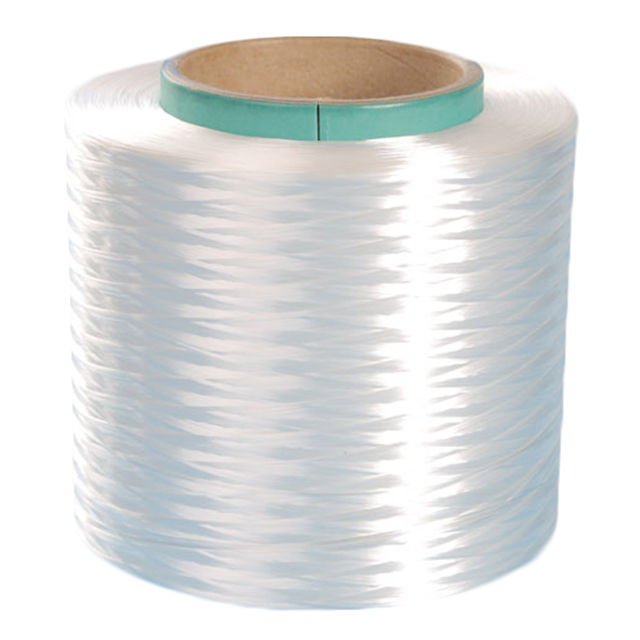

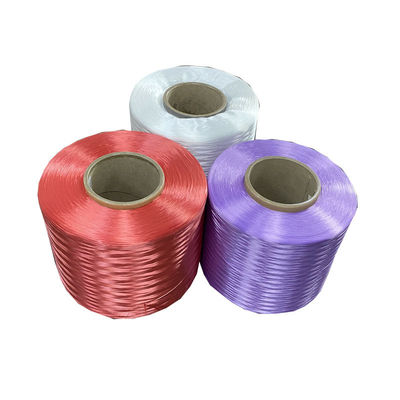

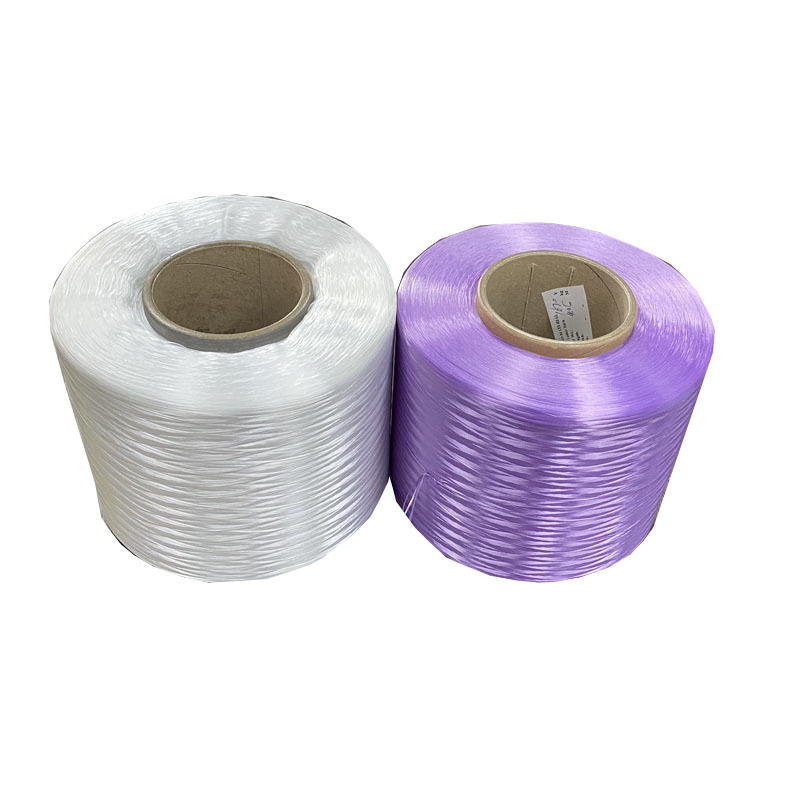

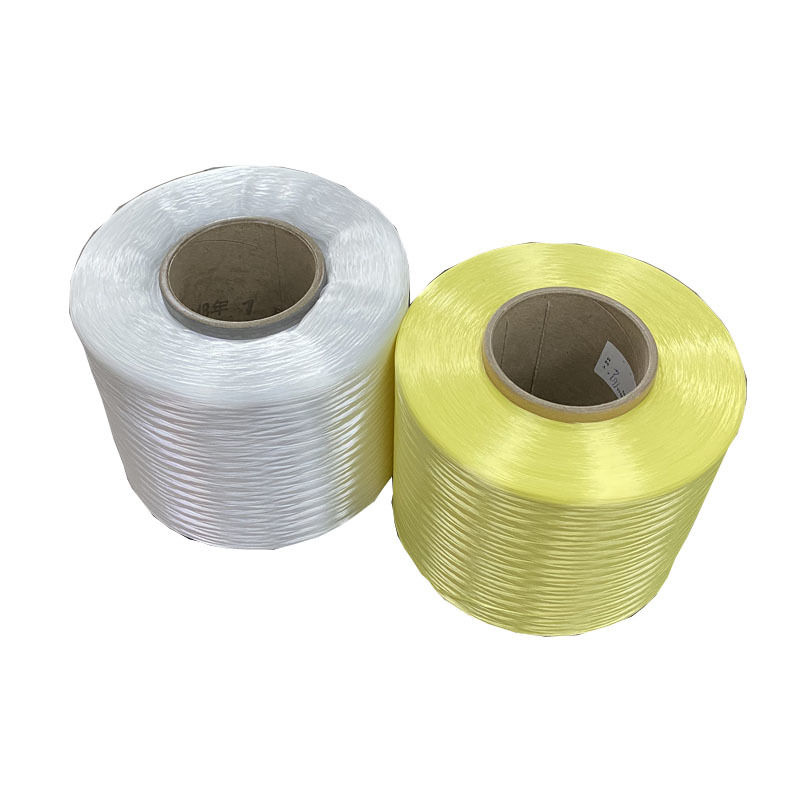

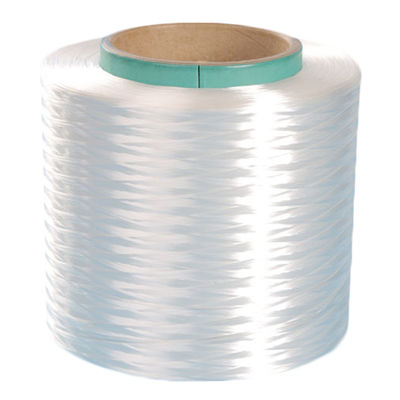

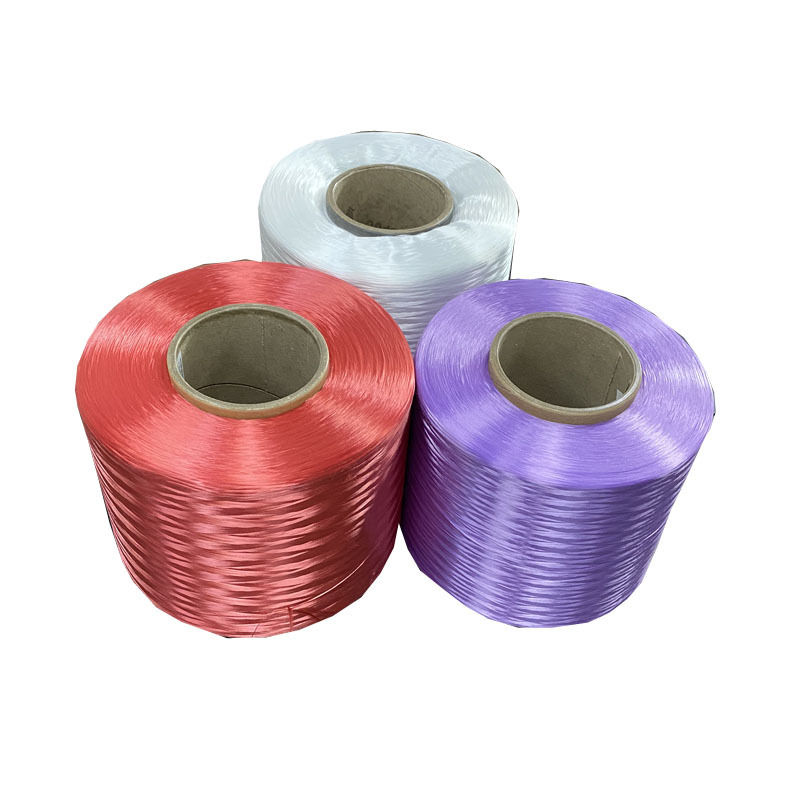

High Tenacity Polyester Yarn 3330 Tex for Optical Cable Binding 0
High Tenacity Polyester Yarn 3330 Tex for Optical Cable Binding 1
High Tenacity Polyester Yarn 3330 Tex for Optical Cable Binding 2
Packaging Specifications
Bobbin ID (mm) Bobbin Height (mm) Yarn OD (mm) Yarn Weight (kg) Core
Standard: 95, 128
Optional: 52,76		 Standard: 170, 185, 200, 215
Optional: 110, 285		 200-250 2-6 Paper
Applications
Our polyester binder yarn is specifically designed for high-speed binding of SZ-stranded optical fibers. Available in both Low Shrinkage (LS) and Ultra Low Shrinkage (ULS) versions to meet various cable design requirements.
High Tenacity Polyester Yarn 3330 Tex for Optical Cable Binding 3
Frequently Asked Questions
Can we add our own logo?
Yes, we can customize the product with your logo and provide free design services.
What is your product quality?
Our factory uses advanced conical cone machines to produce even, high-strength yarn. We guarantee bulk orders will match sample quality exactly.
Do you provide samples?
Yes, we offer free samples with shipping costs to be covered by the customer.
Do you offer after-sales service?
Yes, we provide comprehensive after-sales support and are available for any questions.
How quickly can I get pricing?
We provide quotations within 24 hours of receiving your detailed inquiry.
Company Information
Jiangxi Longtai New Material Co., Ltd. was established in April 2002 and successfully listed in China OTC market in October 2015 (Stock No. 836898). We specialize in developing and selling various new materials, wire & cable materials, and agricultural products.
Our monthly production capacity exceeds 1000 metric tons, with over 30% of products exported to Europe, America, Japan, Southeast Asia, and Africa. We collaborate with many well-known domestic and international listed companies.
Certified to ISO 9001:2008 quality standards, our products meet environmental requirements verified by SGS, including ROHS, REACH-SVHC, and Halogen Free compliance.
High Tenacity Polyester Yarn 3330 Tex for Optical Cable Binding 4
High Tenacity Polyester Yarn 3330 Tex for Optical Cable Binding 5
High Tenacity Polyester Yarn 3330 Tex for Optical Cable Binding 6
High Tenacity Polyester Yarn 3330 Tex for Optical Cable Binding 7
High Tenacity Polyester Yarn 3330 Tex for Optical Cable Binding 8
